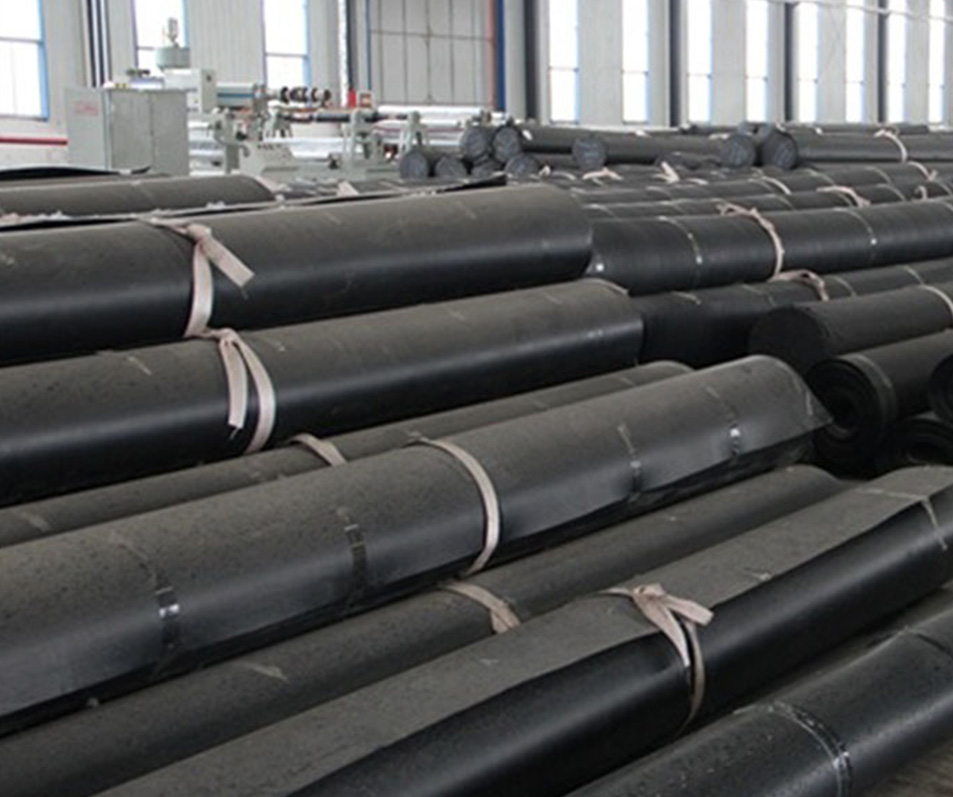

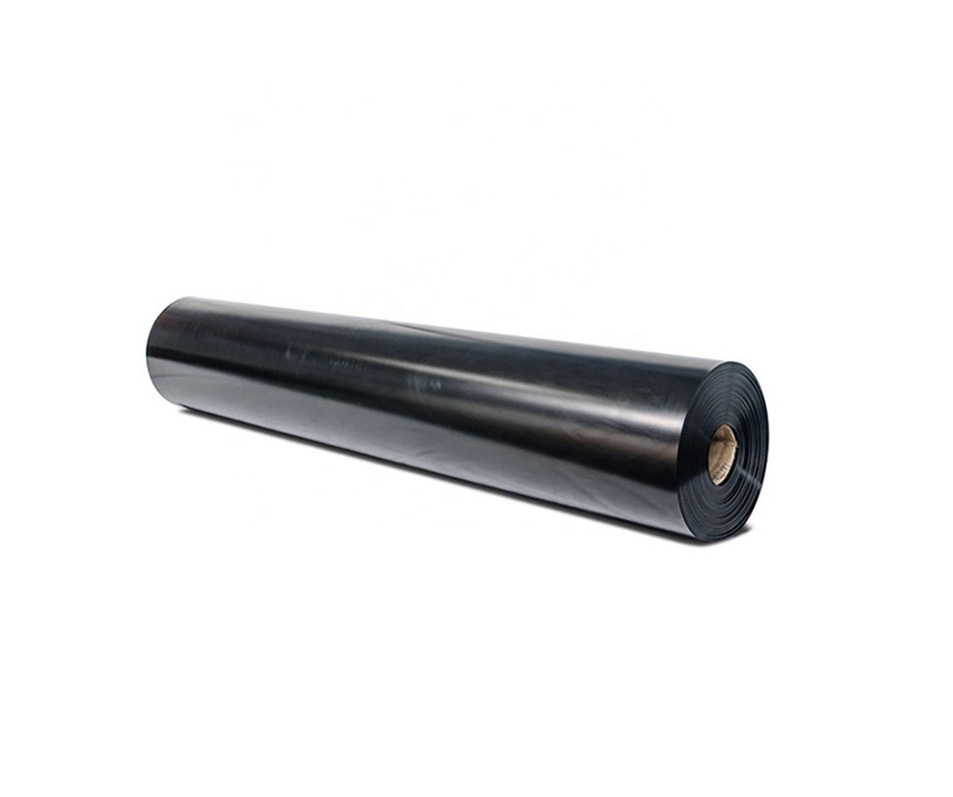

Casingscreen(Kaisen)'s Geomembranes are engineered to provide a reliable and durable barrier for a variety of containment and lining applications. These high-performance membranes are made from select polymers, offering excellent resistance to chemicals, punctures, and environmental stressors. With a smooth surface and superior flexibility, our geomembranes are designed to conform to complex shapes and contours, ensuring a tight seal and effective barrier against liquids and gases.
Casingscreen(Kaisen)'s Geomembranes are engineered to provide a reliable and durable barrier for a variety of containment and lining applications. These high-performance membranes are made from select polymers, offering excellent resistance to chemicals, punctures, and environmental stressors. With a smooth surface and superior flexibility, our geomembranes are designed to conform to complex shapes and contours, ensuring a tight seal and effective barrier against liquids and gases.
|
Properties |
GM0.5 |
GM0.75 |
GM1.0 |
GM1.25 |
GM1.5 |
GM2.0 |
|
Thickness |
0.50mm |
0.75mm |
1.00mm |
1.25mm |
1.50mm |
2.00mm |
|
Density ( ≥) |
0.940g/cc |
0.940g/cc |
0.940g/cc |
0.940g/cc |
0.940g/cc |
0.940g/cc |
|
Tensile Properties ( ≥) •yield strength •break strength •yield elongation • break elongation |
7 kN/m 10kN/m — 600% |
10 kN/m 15kN/m — 600% |
13 kN/m 20 kN/m 11% 600% |
16 kN/m 25 kN/m 11% 600% |
20 kN/m 30 kN/m 11% 600% |
26 kN/m 40 kN/m 11% 600% |
|
Tear Resistance ( ≥) |
56 N |
84 N |
115 N |
140 N |
170 N |
225 N |
|
Puncture Resistance ( ≥) |
120 N |
180 N |
240 N |
300 N |
360 N |
480 N |
|
Carbon Black Content ( ≥) |
2.0-3.0% |
2.0-3.0% |
2.0-3.0% |
2.0-3.0% |
2.0-3.0% |
2.0-3.0% |
|
Carbon Black Dispersion ( ≥) |
Note(1) |
Note(1) |
Note(1) |
Note(1) |
Note(1) |
Note(1) |
|
Oxidative Induction Time(OIT) Standard OIT ( ≥) |
60 min. |
60 min. |
60 min. |
60 min. |
60 min. |
60 min. |
Formulated to withstand exposure to a broad range of chemicals, ensuring long-term stability and performance.
Engineered with high tensile strength to resist punctures and tears, even under heavy loads or rough handling.
Resilient against UV rays, extreme temperatures, and weathering, making them suitable for outdoor and long-term use.
Capable of being heat-welded or chemically bonded to create a watertight seal, minimizing the risk of leaks or breaches.
Suitable for both temporary and permanent installations, accommodating a wide array of application-specific needs.
Used in landfill construction to prevent the leaching of hazardous substances into the ground.
Ideal for lining ponds, reservoirs, and lakes to conserve water and prevent seepage.
Employed in the mining industry to contain tailings and prevent environmental contamination.
Used in irrigation systems and for covering silage to protect crops and feed from spoilage.
Applied in road construction, tunneling, and other civil engineering projects to provide a protective barrier.
We are not only a product manufacturer, also a solution provider, whether you have a Question or Request For Quotations, we're here to help.
