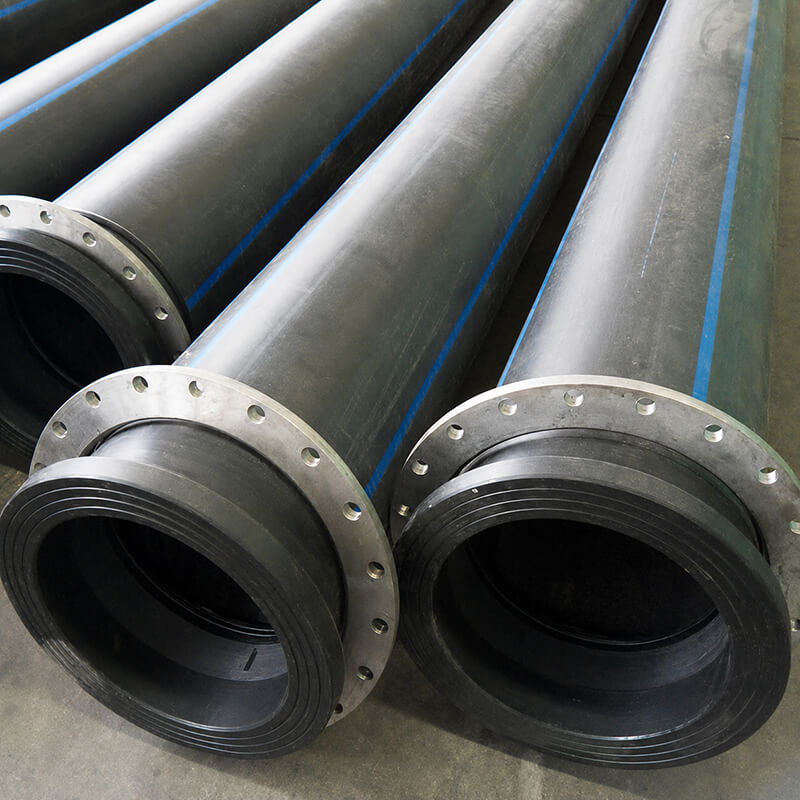

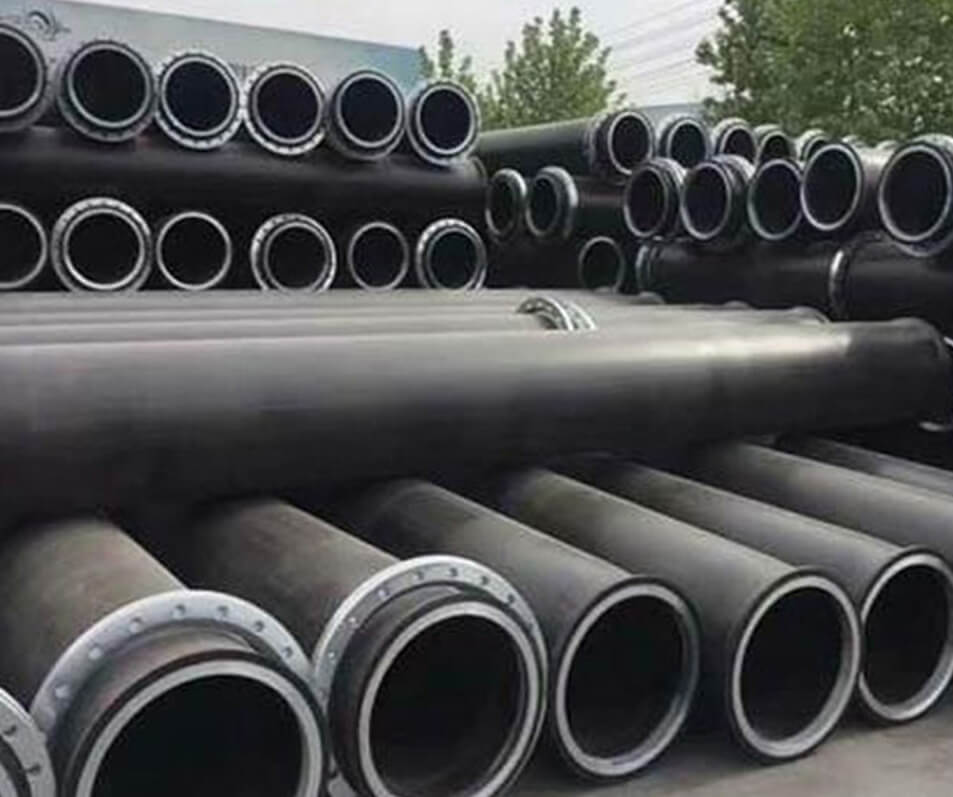

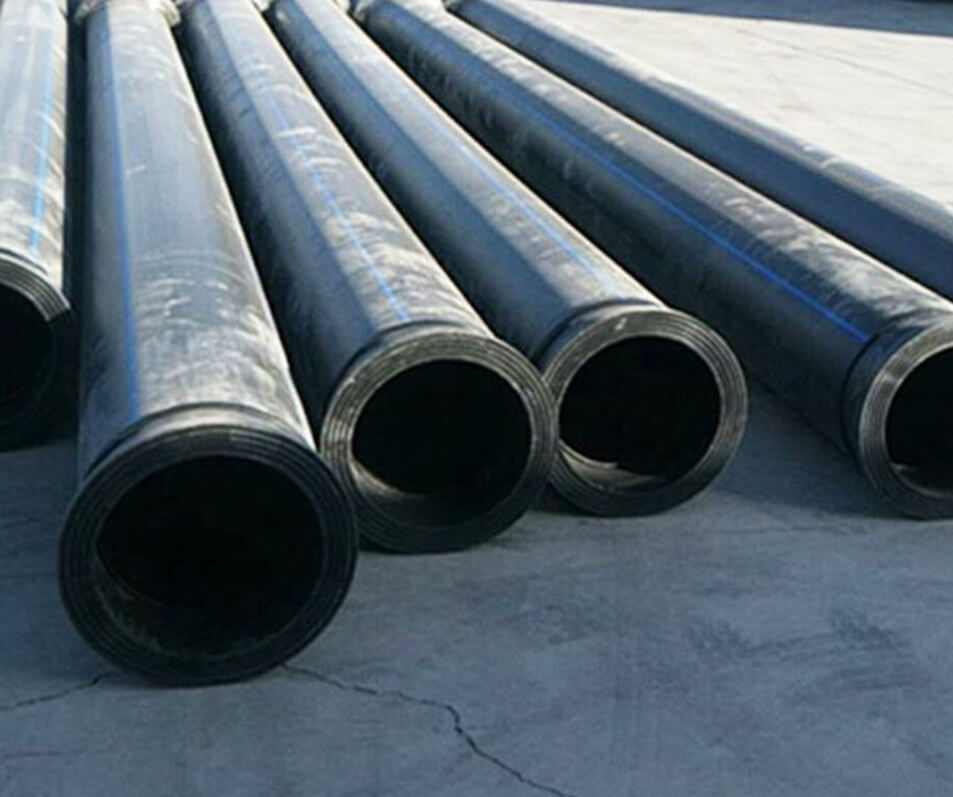

HDPE Dredging Pipe

HDPE dredge Pipe is made from high density polyethylene resin. It has high rigidity and toughness, with little resistance but high mechanical strength.

Delivery: 10-30 days depending on the total quantity.

Packing: 11.8m/ Pcs for 40ft or 5.8m/ Pcs.

CO (Certificate of Origin): China, CO could be provided by free.

Products Inspection: Raw material, production process, delivery or third-party factory inspection.

MOQ: Trial Order or 1*20ft containers by mixed loading.

Send E-mail Get Price

Facebook Twitter LinkedIn Pinterest Share

WhatApp：+86-15522676451
E-mail：inquiry@casingscreenpipe.com
Tel: +86-15522676451
Address：Room 708, Building D, New City Center, Xiqing District, Tianjin

Introduction

1. HDPE dredge Pipe is made from high density polyethylene resin. It has high rigidity and toughness, with little resistance but high mechanical strength.

2. Corrosion resistance: High resistance to attack from various types of chemicals. No electrochemical corrosion.

3. It has ultra-high wear resistance, abrasion degree is 4-8 times of steel pipe, useful life can reach more than five years.

4. It is very light so it's easy to install and transport and then save construction time.

5. Total Length ≤12m; Working pressure and inner diameter can be customized.

Parameter

PE100	0.4MPa	0.5MPa	0.6MPa	0.8MPa	1.0MPa	1.25MPa	1.6MPa	2.0MPa	2.5MPa
OD	PN4	PN5	PN6	PN8	PN10	PN12.5	PN16	PN20	PN25
	SDR41	SDR33	SDR26	SDR21	SDR17	SDR13.6	SDR11	SDR9	SDR7.4
	Wall Thickness (en)
75	-	-	2.9	3.6	4.5	5.6	6.8	8.4	10.3
90	-	-	3.5	4.3	5.4	6.7	8.2	10.1	12.3
110	-	-	4.2	5.3	6.6	8.1	10.0	12.3	15.1
125	-	-	4.8	6.0	7.4	9.2	11.4	14.0	17.1
140	-	-	5.4	6.7	8.3	10.3	12.7	15.7	19.2
160	-	-	6.2	7.7	9.5	11.8	14.6	17.9	21.9
180	-	-	6.9	8.6	10.7	13.3	16.4	20.1	24.6
200	-	-	7.7	9.6	11.9	14.7	18.2	22.4	27.4
225	-	-	8.6	10.8	13.4	16.6	20.5	25.2	30.8
250	-	-	9.6	11.9	14.8	18.4	22.7	27.9	34.2
280	-	-	10.7	13.4	16.6	20.6	25.4	31.3	38.3
315	7.7	9.7	12.1	15.0	18.7	23.2	28.6	35.2	43.1
355	8.7	10.9	13.6	16.9	21.1	26.1	32.2	39.7	48.5
400	9.8	12.3	15.3	19.1	23.7	29.4	36.3	44.7	54.7
450	11.0	13.8	17.2	21.5	26.7	33.1	40.9	50.3	61.5
500	12.3	15.3	19.1	23.9	29.7	36.8	45.4	55.8	-
560	13.7	17.2	21.4	26.7	33.2	41.2	50.8	62.5	-
630	15.4	19.3	24.1	30.0	37.4	46.3	57.2	70.3	-
710	17.4	21.8	27.2	33.9	42.1	52.2	64.5	79.3	-
800	19.6	24.5	30.6	38.1	47.4	58.8	72.6	89.3	-
900	22.0	27.6	34.4	42.9	53.3	66.2	81.7	-	-
1000	24.5	30.6	38.2	47.7	59.3	72.5	90.2	-	-
1200	29.4	36.7	45.9	57.2	67.9	88.2	-	-	-

Application

Transport sand,mud,slurry in dredging projects ,sand suction projects and seawater treatment projects.
Transport mine tailings and slurry, metallurgical mines in the mining industry.
Transport pulverized coal and coal-water slurry of coal preparation plant in the coal industry.
Transport mud and corrosive media with slag in the chemical industry .
