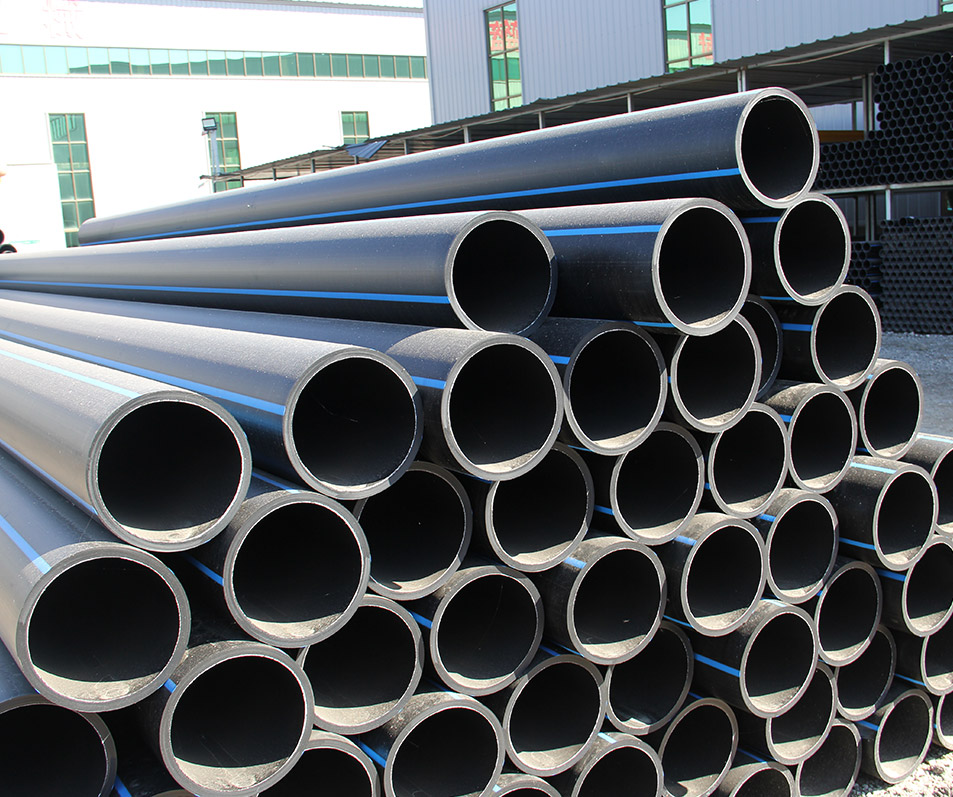

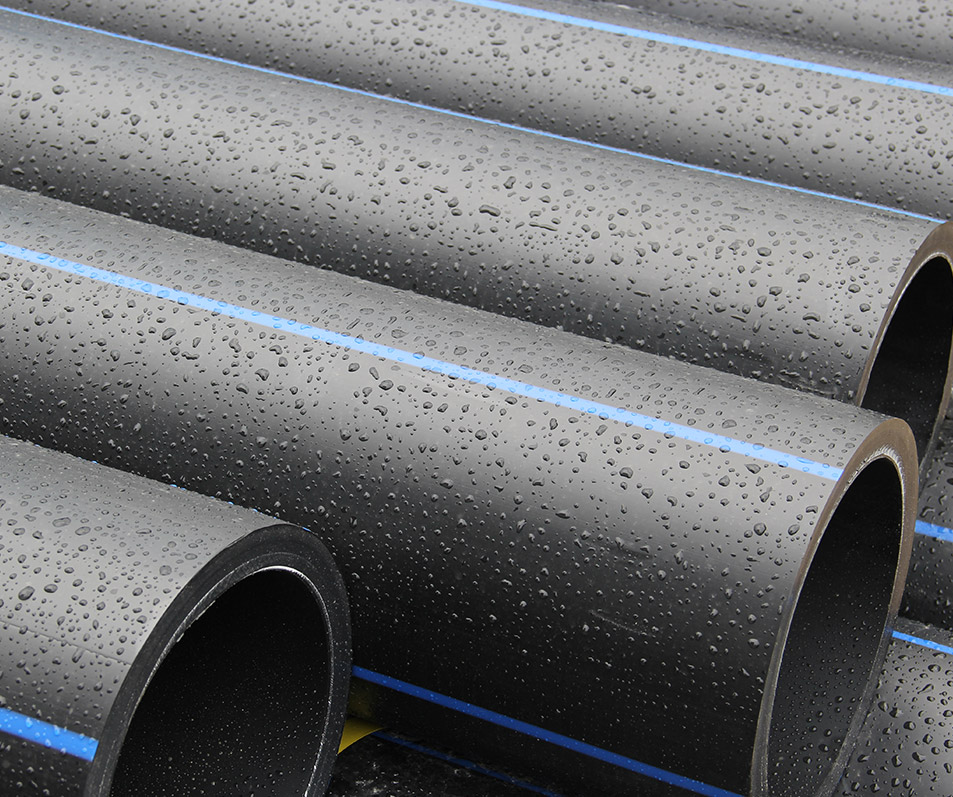

HDPE pipe is a perfect solution for municipal engineering system and urban water supply and drainage system. HDPE pipe adopts high-quality original PE80 or PE100 raw material, with the size range of DN 20-1200mm, and the performance conforms to ISO4427 standard and other national certification standards.
PE water supply pipes have a smooth inner surface that does not change over time, resulting in low friction resistance and energy savings. Pressure loss is approximately 30% lower than that of steel pipes, allowing for the use of smaller diameters. They have excellent hygiene performance, contain no additives, and pose no risk of contaminating drinking water. According to ISO standards, polyethylene material is classified as Grade 0, meaning it does not support mold growth. Compared to other commonly used plastic materials, polyethylene has significantly higher mold resistance and does not accumulate scale even with long-term use.
PE pipes are suitable for general-purpose pressure water supply and drinking water transportation at temperatures not exceeding 40°C and nominal pressures below 1.6 MPa. They are primarily used in municipal buried water supply systems, building water supply and drainage systems, agricultural irrigation, and water feature engineering.
PE pipe material comprehensive performance and application areas | Temperature resistance | Low-temperature brittleness temperature is very low, allowing use within the range of -40°C to 60°C. Installation and construction in winter will not cause pipe brittleness.
Applications of PE Water Supply Pipes
PE water supply pipes are suitable for general-purpose pressure water supply and the conveyance of drinking water.
They are primarily used in municipal buried water supply systems, building water supply and drainage systems, agricultural irrigation, and water feature engineering. In water supply pipeline projects, PE water supply pipes will eventually replace UPVC pipes.
High resistant to corrosion and weather, recent studies 50+years.conclude it, will last at least
Its light weight and flexibility make it easy to install, elim-inating the need for fittings required with directiona!changes.
Its high-strength walls give it the highest PE pressurerating.outstand ing resistance to SCG and increased resistance to rapid crack propagation.
The increased working stress rating of high-perfomancePE resin material makes it a superior choice over steelor ductile iron pipe.
Both ends of the sealing ring connected, good sealingperformance, convenient installation,effectively improvethe installation efficiency.
|
Products Details Information |
|
|
Product Name |
High-density polyethylene (HDPE) pipes and fittings |
|
Brand |
Casingscreen pipeline(Customer brand is available) |
|
Dia Ranges |
DN 20-2000mm(1/2 inch - 80 inch) |
|
Raw material |
PE100, PE80, PE4710, PE3608, PE100RC... |
|
Application |
Drinking water, fresh water, drainage, mining, dredging, marine, industry, chemical... |
|
Color |
Black with blue stripes, blue for water, black with orange stripes or yellow for gas & oil |
|
Standards |
ISO 4427, EN12201, AS/NZS4130, ASTM 3035, DIN8074, GOST18599, DIPS, ASTM F714 for water; ISO4437, EN1555, AS/NZS4130, ASTM D3035 etc. for gas |
|
Matching Products |
HDPE pipe fittings, customized PE fittings, DI/Steel backing ring flanges, valves, water meters, flow gauges, welding machines and tools, etc. |
|
Company / Factory Strength |
|
|
Production Capacity |
120*40ft containers/month |
|
Sample |
DRD Free sample could be provided |
|
Quality |
QA & QC system, ensure traceability of each process |
|
Warranty |
50 years with normal use |
|
Certificates |
ISO 9001, OHSAS 18001, ISO 14001, CE... |
|
Delivery Time |
5-30 days, depending on the quantity |
|
Test/Inspection |
National Standard Laboratory/ Pre-delivery inspection |
|
Service |
Research, Design, Manufacture, Test, Sales, Solution Providing, After-sale Service |
|
Management |
Effective 8S Management System |
|
No. of employees |
More than 300 people |
|
Standard:IS04427;EN12201;ASTM D3035;AS/NZS 4130;GB/T 13663;ASTMF714(IPS/DIPS) |
|||||
|
Nominal Pressure |
0.6MPa |
0.8MPa |
1.0MPa |
1.25MPa |
1.6MPa |
|
SDR |
SDR26 |
SDR21 |
SDR17 |
SDR13.6 |
SDR11 |
|
DN(mm) |
Thickness(mm) |
Thickness(mm) |
Thickness(mm) |
Thickness(mm) |
Thickness(mm) |
|
16 |
|
|
|
|
2 |
|
20 |
|
|
|
2 |
2.3 |
|
25 |
|
|
|
2 |
2.3 |
|
32 |
|
|
2.3 |
2.4 |
3 |
|
40 |
|
2.3 |
2.3 |
3 |
3.7 |
|
50 |
|
2.3 |
2.9 |
3.7 |
4.6 |
|
63 |
2.3 |
3 |
3.6 |
4.7 |
5.8 |
|
75 |
2.9 |
3.6 |
4.5 |
5.6 |
6.8 |
|
90 |
3.5 |
4.3 |
5.4 |
6.7 |
8.2 |
|
110 |
4.2 |
5.3 |
6.6 |
8.1 |
10 |
|
125 |
4.8 |
6 |
7.4 |
9.5 |
11.4 |
|
140 |
5.4 |
6.7 |
8.3 |
10.3 |
12.7 |
|
160 |
6.2 |
7.7 |
9.5 |
11.8 |
14.6 |
|
180 |
6.9 |
8.6 |
10.7 |
13.3 |
16.4 |
|
200 |
7.7 |
9.6 |
11.9 |
14.7 |
18.2 |
|
225 |
8.6 |
10.8 |
13.4 |
16.6 |
20.5 |
|
250 |
9.6 |
11.9 |
14.8 |
18.4 |
22.7 |
|
280 |
10.7 |
13.4 |
16.6 |
20.6 |
25.4 |
|
315 |
12.1 |
15 |
18.7 |
23.2 |
28.6 |
|
355 |
13.6 |
16.9 |
21.1 |
26.1 |
32.2 |
|
400 |
15.3 |
19.1 |
23.7 |
29.4 |
36.3 |
|
450 |
17.2 |
21.5 |
26.7 |
33.1 |
40.9 |
|
500 |
19.1 |
23.9 |
29.7 |
36.8 |
45.4 |
|
560 |
21.4 |
26.7 |
33.2 |
41.2 |
50.8 |
|
630 |
24.1 |
30 |
37.4 |
46.3 |
57.3 |
|
710 |
27.2 |
33.9 |
42.1 |
52.2 |
- |
|
800 |
30.6 |
38.1 |
47.4 |
58.8 |
- |
|
900 |
34.4 |
42.9 |
53.3 |
- |
- |
|
1000 |
38.2 |
47.7 |
59.3 |
- |
- |
|
1200 |
45.9 |
57.2 |
70.6 |
- |
- |
|
1400 |
53.9 |
66.7 |
82.4 |
- |
- |
|
1600 |
61.2 |
76.2 |
94.1 |
- |
- |
|
1800 |
69.1 |
85.7 |
105.9 |
- |
- |

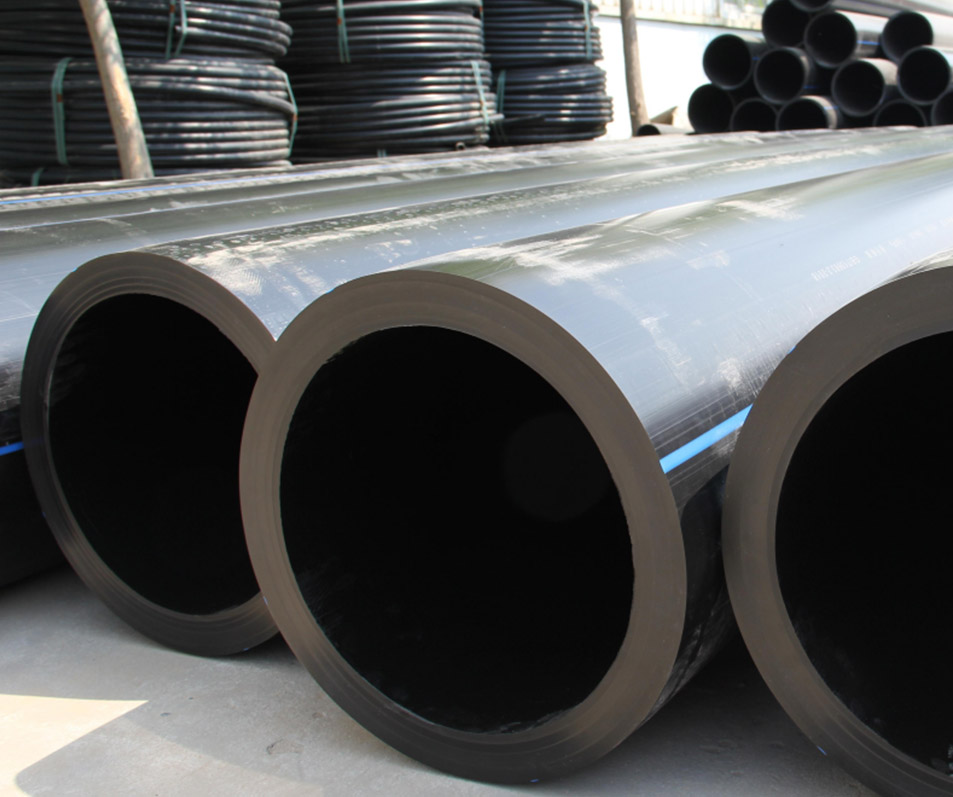

Large diameter HDPE pipe is healthy and non-toxic and more suitable for urban water supply main conduit and buried tube.
Replace cement tube, iron pipe and steel tube. Applicable for renovation project and does not need large area excavation, HDPE pipe can be widely used in old town of pipe network reconstruction.
Chemical industry, chemical fiber, food, forestry, pharmacy, light industry and paper making, metallurgical and other industrial raw material conveying pipe.
As landscaping project needs lots of water supply pipes, HDPE pipe is the best choice for its toughness and low costs.
HDPE pipe have unique corrosion resistance, can be used as industrial wastewater and sewage discharged pipe.
Ore and mud transfers HDPE pipe has high resistance to stress and wear resistance, can be widely applied in conveying ore, coal ash and river bait-casting mud.
Agricultural irrigation pipe HDPE pipe has the merits of great flow and good impact resistance, it is the ideal tool for agricultural irrigation.
HDPE drainage pipes are suitable for low-pressure underground drainage and sewage, conveying soil and wastewater generated by life and industry as well as surface water.
Because of its high temperature resistance, anti - burst, corrosion resistance and other characteristics, widely used in product-tion and life in all aspects
