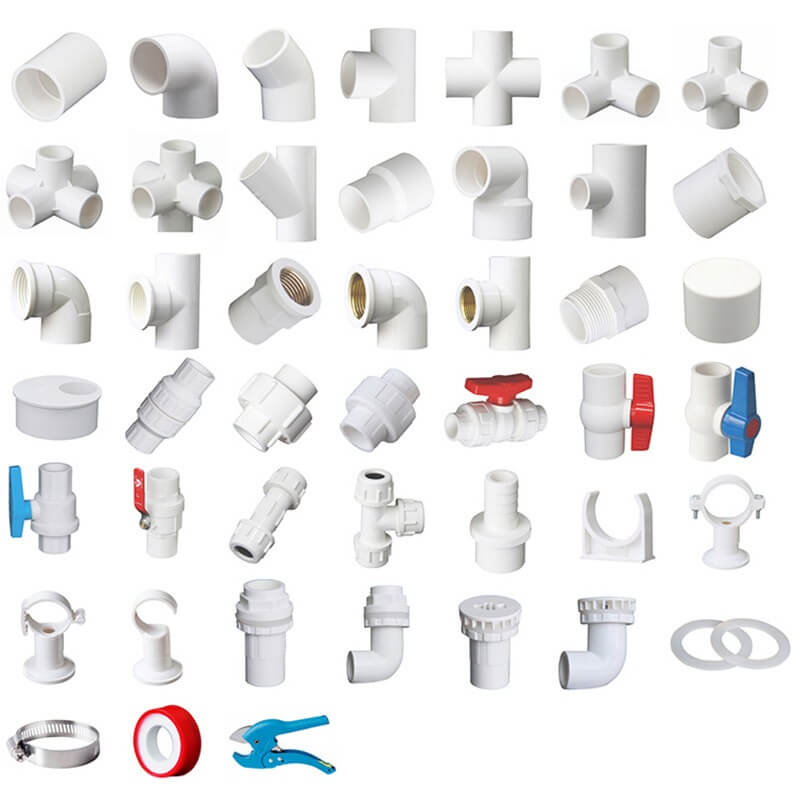

PVC Water Supply Pipe Fittings

1. Product Name:PVC Fittings

2. Types:45° Elbow ;Reducing Tee ;90° Elbow ;Equal Tee ;Male Adaptor ;Coupling ;Female Adaptor ;End Cap ;Bracket;Reducer ;Nipple ;Reducing Bushine ;Saddle Clamp ;TS Flange ;Flexible Access Coupling ;Van Stone Flange...

3. Application: Water supply, Swimming pool, Agricultural field, Irrigation system

4. Pressure: PN10/16

5. Size:20-400mm

6. Delivery: 10-30 days depending on the total quantity.

7. Packing: Carton, Polybag, Color Box, or Customized

8. Standard:DIN

9. Products Inspection: Raw material, production process, delivery or third-party factory inspection

10. MOQ: Trial Order or 1*20ft containers by mixed loading.

Send E-mail Get Price

Facebook Twitter LinkedIn Pinterest Share

WhatApp：+86-15522676451
E-mail：inquiry@casingscreenpipe.com
Tel: +86-15522676451
Address：Room 708, Building D, New City Center, Xiqing District, Tianjin

Introduction

01 Excellent Corrosion Resistance:

Resistant to chemicals including acids, alkalis, and salts, ensuring a long service life.
02 Smooth Inner Wall:

Low friction coefficient effectively ensures smooth water flow.
03 Outstanding Flame Retardancy:

Capable of self-extinguishing upon removal of the flame.
04 Efficient and Easy Installation:

Lightweight material and simple installation process significantly improve construction efficiency, offering high cost-effectiveness.
05 Safe and Eco-Friendly:

Non-toxic and odorless material complies with potable water transmission standards.

Parameter

Name	Model	Size
45 DEG ELBOW	QX19	20mm, 25mm, 32mm, 40mm, 50mm, 63mm, 75mm, 90mm, 110mm, 125mm, 140mm, 160mm, 180mm, 200mm, 225mm, 250mm, 280mm, 315mm, 355mm, 400mm
REDUCING TEE	QX20	25*20mm, 32x20mm, 32x25mm, 40x20mm, 40x25mm, 40x32mm, 50x20mm, 50x25mm, 50x32mm, 50x40mm, 63x20mm, 63x25mm, 63x32mm, 63x40mm, 63x50mm, 75x32mm, 75x40mm,75x50mm, 75x63mm, 90x50mm, 90x63mm, 90x75mm, 110x50mm, 110x63mm, 110x75mm, 110x90mm, 125x75mm, 125x90mm, 125x110mm, 140x110mm, 160x90mm, 160x110mm, 160x125mm, 160x140mm, 180x160mm, 200x110mm, 200x160mm, 225x160mm, 225x200mm, 250x110mm, 250x160mm, 250x200mm, 280x250mm, 315x110mm, 315x160mm, 315x200mm, 315x250mm, 355x200mm, 355x250mm, 355x315mm, 400x200mm, 400x250mm, 400x315mm, 400x355mm

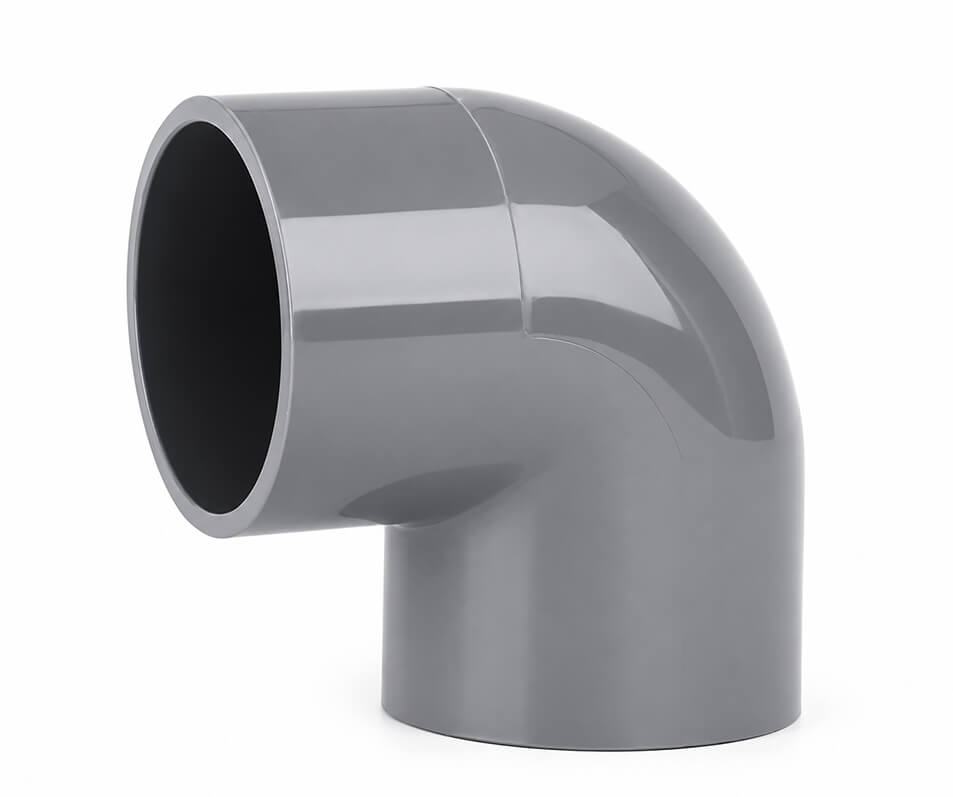

90 DEG ELBOW	QX21	20mm, 25mm, 32mm, 40mm, 50mm, 63mm, 75mm, 90mm, 110mm, 125mm, 140mm, 160mm, 180mm, 200mm, 225mm, 250mm, 280mm, 315mm, 355mm, 400mm
EQUAL TEE	QX22	20mm, 25mm, 32mm, 40mm, 50mm, 63mm, 75mm, 90mm, 110mm, 125mm, 140mm, 160mm, 180mm, 200mm, 225mm, 250mm, 280mm, 315mm, 355mm, 400mm
MALE ADAPTOR	QX23	1/2", 3/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 4"

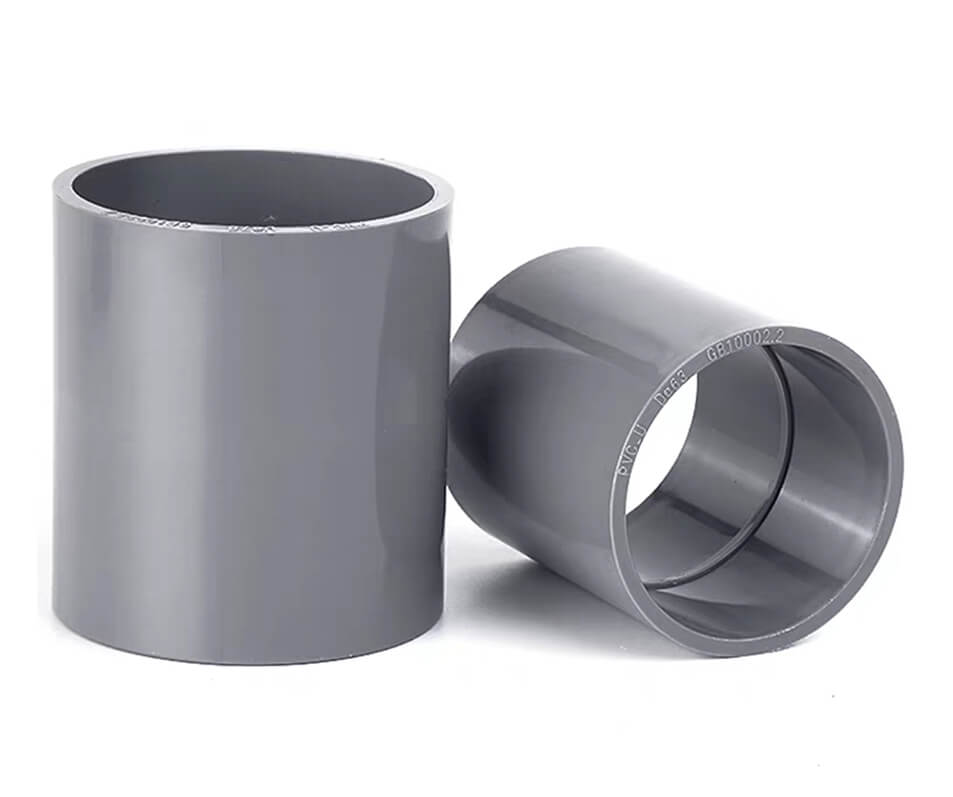

COUPLING	QX24	20mm, 25mm, 32mm, 40mm, 50mm, 63mm, 75mm, 90mm, 110mm, 125mm, 140mm, 160mm, 180mm, 200mm, 225mm, 250mm, 280mm, 315mm, 355mm, 400mm
FEMALE ADAPTOR	QX25	1/2", 3/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 4"
END CAP	QX26	20mm, 25mm, 32mm, 40mm, 50mm, 63mm, 75mm, 90mm, 110mm, 125mm, 140mm, 160mm, 180mm, 200mm, 225mm, 250mm, 280mm, 315mm, 355mm, 400mm
BRACKET	QX27	20mm, 25mm, 32mm, 40mm, 50mm, 63mm
REDUCER	QX28	25*20mm, 32x20mm, 32x25mm, 40x20mm, 40x25mm, 40x32mm, 50x20mm, 50x25mm, 50x32mm, 50x40mm, 63x25mm, 63x32mm, 63x40mm, 63x50mm, 75x32mm, 75x40mm, 75x50mm, 75x63mm, 90x40mm, 90X50mm, 90x63mm, 90x75mm, 110x50mm, 110x63mm, 110x75mm, 110x90mm, 125x90mm, 125x110mm, 140x90mm, 140x110mm, 160x90mm, 160x110mm, 160x125mm, 160x140mm, 180x160mm, 200x110mm, 200x125mm, 200x140mm, 200x160mm, 225x110mm, 225x125mm, 225x160mm, 225x200mm, 250x110mm, 250x160mm, 250x200mm, 280x250mm, 315x110mm, 315x125mm, 315x160mm, 315x200mm, 315x225mm, 315x250mm, 355x200mm, 355x250mm, 355x315mm, 400x200mm, 400x250mm, 400x315mm, 400x355mm
NIPPLE	QX29	1/2", 3/4", 1", 1 1/4", 1 1/2", 2"
REDUCING BUSHINE	QX30	25*20mm, 32x25mm, 40x32mm, 50x40mm, 63x50mm,75x63mm, 90x75mm, 110x90mm, 140x110mm, 160x140mm, 225x160mm
SADDLE CLAMP	QX31	63mm x1", 75mmx1", 90mmx1 1/2", 110mmx3/8", 110mmx1/2", 110mmx3/4", 110mmx1", 110mmx 1 1/2", 110mmx2", 110mm x2 1/2", 125mm x 1 1/2", 125mmx2', 125mmx 2 1/2", 160mm x3/8", 160mmx1/2", 160mmx3/4", 160mmx1", 160mmx 1 1/2", 160mmx2", 160mm x 2 1/2", 200mm x 1 1/2", 200mmx2", 200mmx2 1/2", 225mmx1/2", 225mmx3/4", 225mmx1", 225mmx 1 1/2", 225mm x 2", 225mmx 2 1/2", 250mm x2", 250mmx2 1/2", 250x3", 315mmx2", 315mmx3", 315mmx4", 315 x110mm, 315x160mm, 400x200mm
TS FLANGE	QX32	20mm, 25mm, 32mm, 40mm, 50mm, 63mm, 75mm, 90mm, 110mm, 140mm, 160mm, 180mm, 200mm, 250mm, 280mm
FLEXIBLE ACCESS COUPLING	QX33	110mm, 160mm, 200mm, 225mm, 250mm
VAN STONE FLANGE	QX35	50mm, 63mm, 75mm, 90mm, 110mm, 125mm, 160mm, 200mm, 125mm, 250mm, 315mm, 355mm, 400mm

Application

01 Municipal Water Supply Networks:

Used for main urban water pipelines and service lines connecting to end users.
02 Building Water and Drainage Systems:

Suitable for cold water supply, sewage, and rainwater systems in buildings.
03 Pressurized Irrigation Systems:

Widely applied in agricultural and landscape irrigation networks requiring pressurized water delivery.
04 Pressurized Drainage and Wastewater Transport:

Employed in systems that require pressurized movement of drainage, sewage, and treated wastewater.
