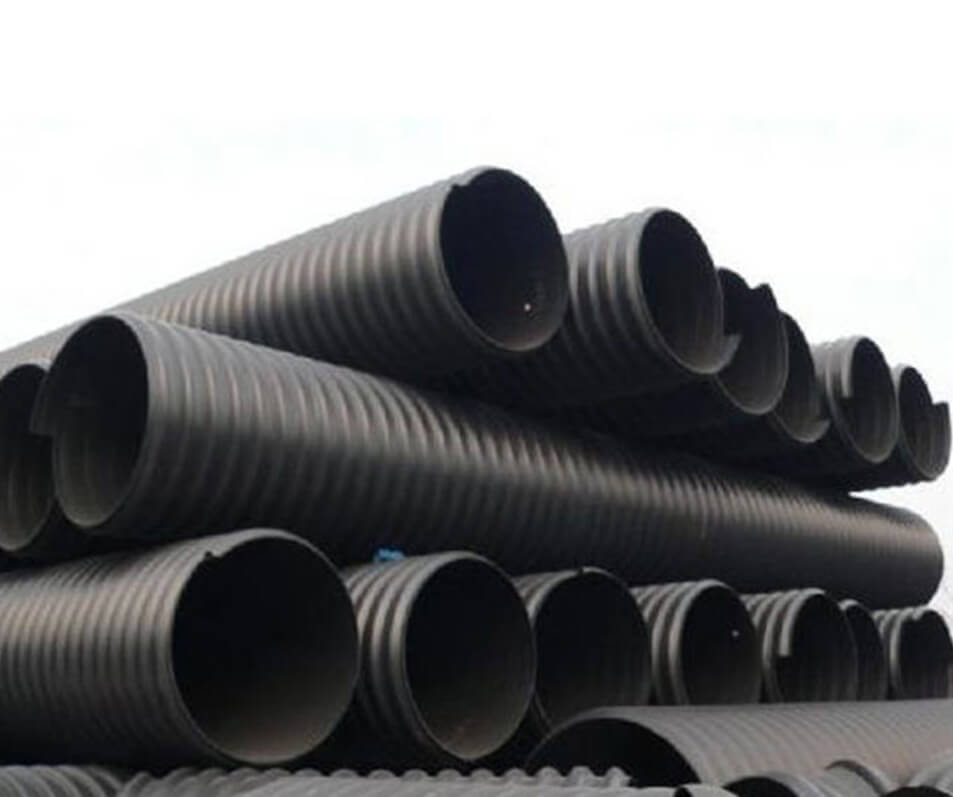

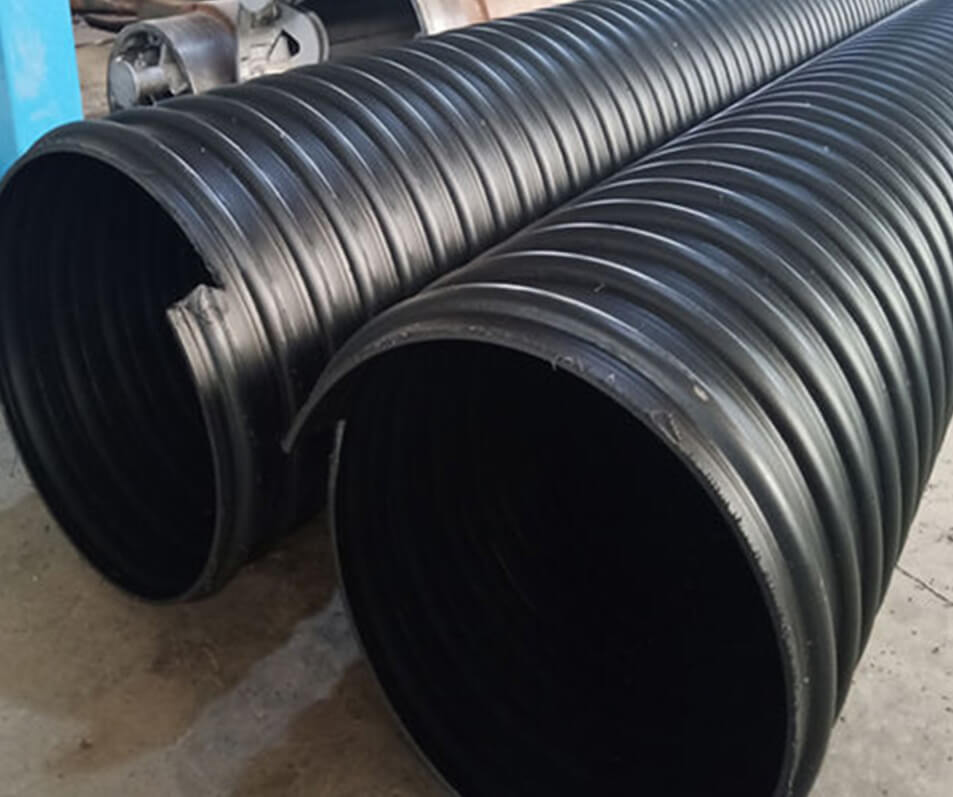

HDPE steel belt reinforced corrugated pipe is a new steel-plastic composite gravity self-flow pipe by welding of special composite strip, it perfectly combines advantages of ordinary pressure plastic pipe and high strength steel ribs, can satisfy all the project requirements, so it is widely used in different kinds of corrosion or non corrosive medium gravity self-flow transportation.
HDPE steel belt reinforced corrugated pipe is a new steel-plastic composite gravity self-flow pipe by welding of special composite strip, it perfectly combines advantages of ordinary pressure plastic pipe and high strength steel ribs, can satisfy all the project requirements, so it is widely used in different kinds of corrosion or non corrosive medium gravity self-flow transportation.
|
ND/ID(mm) |
Dim.min (mm) |
Emin(mm) |
Emin(mm) |
Pmax(mm) |
Tmin(mm) |
E2min(mm) |
|
300 |
294 |
2.5 |
4 |
75 |
0.4 |
2.2 |
|
400 |
392 |
3 |
4.5 |
85 |
0.4 |
2.2 |
|
500 |
490 |
3.5 |
5 |
100 |
0.5 |
2.5 |
|
600 |
588 |
4 |
6 |
110 |
0.5 |
2.5 |
|
700 |
685 |
4.5 |
6 |
115 |
0.5 |
2.5 |
|
800 |
785 |
5 |
7 |
120 |
0.7 |
3 |
|
900 |
885 |
5 |
7.5 |
135 |
0.7 |
3 |
|
1000 |
985 |
5 |
8 |
150 |
0.7 |
3 |
|
1100 |
1085 |
5 |
8 |
165 |
0.7 |
3 |
|
1200 |
1185 |
5 |
8 |
180 |
0.7 |
3 |
|
1300 |
1285 |
5 |
8 |
210 |
0.4 |
3 |
|
1400 |
1385 |
5 |
8 |
210 |
1 |
3 |
|
1500 |
1485 |
5 |
8 |
220 |
1 |
3 |
|
1600 |
1585 |
5 |
9 |
230 |
1 |
3.5 |
|
1800 |
1785 |
5 |
9 |
230 |
1 |
3.5 |
|
2000 |
1985 |
6 |
9 |
235 |
1 |
3.5 |
|
2200 |
2185 |
6 |
9 |
235 |
1.2 |
3.5 |
|
2400 |
2385 |
6 |
10 |
235 |
1.2 |
3.5 |
This pipe is ideally suited for main sewer lines that require installation at great depths (e.g., under roads, railways, or rivers). Its superior strength prevents deformation under immense soil pressure, ensuring the long-term structural integrity and function of the sewer system.
Widely used as culverts for directing water under roadways, highways, and railway embankments. Its high crush resistance is essential for supporting the heavy, dynamic loads from constant traffic without collapsing, ensuring the stability of the infrastructure above.
Perfect for industrial applications where both high strength and chemical resistance are required. It is used for discharging process water and effluent in demanding sectors like mining, chemical plants, and power generation, where the pipe must withstand both internal corrosion and external burial stresses.
An excellent choice for large-diameter stormwater collection and conveyance systems in urban areas, airports, ports, and industrial parks. Its ability to handle heavy surface loads from aircraft, shipping containers, and truck traffic makes it a reliable and durable solution.
Used for the trenchless rehabilitation of old, damaged concrete or metal pipelines. The pipe is pulled through the existing host pipe, creating a new, structurally sound, and corrosion-resistant liner within the old structure, effectively extending the system's life for decades.
