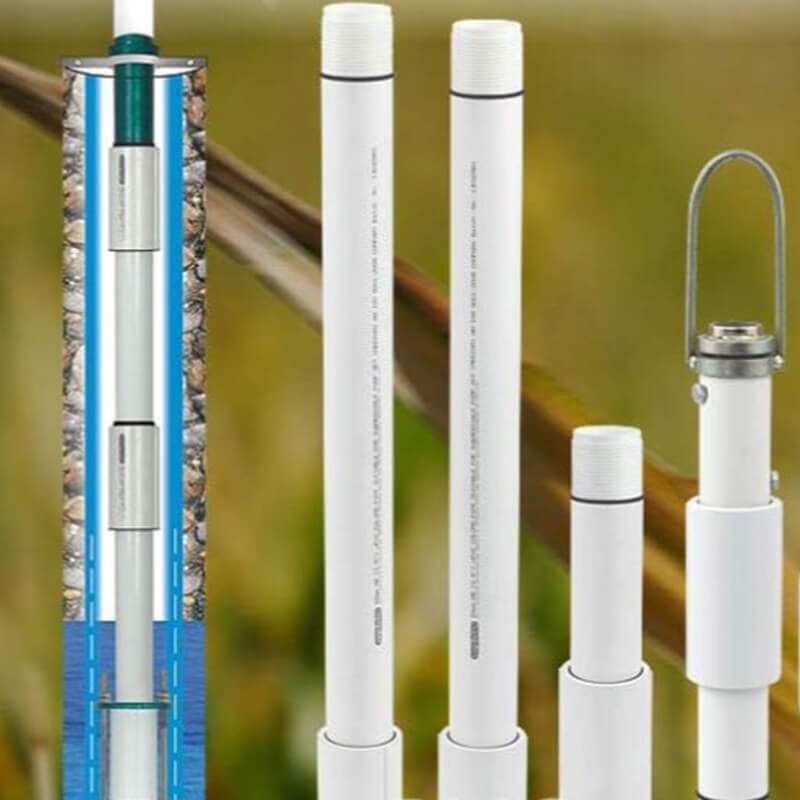

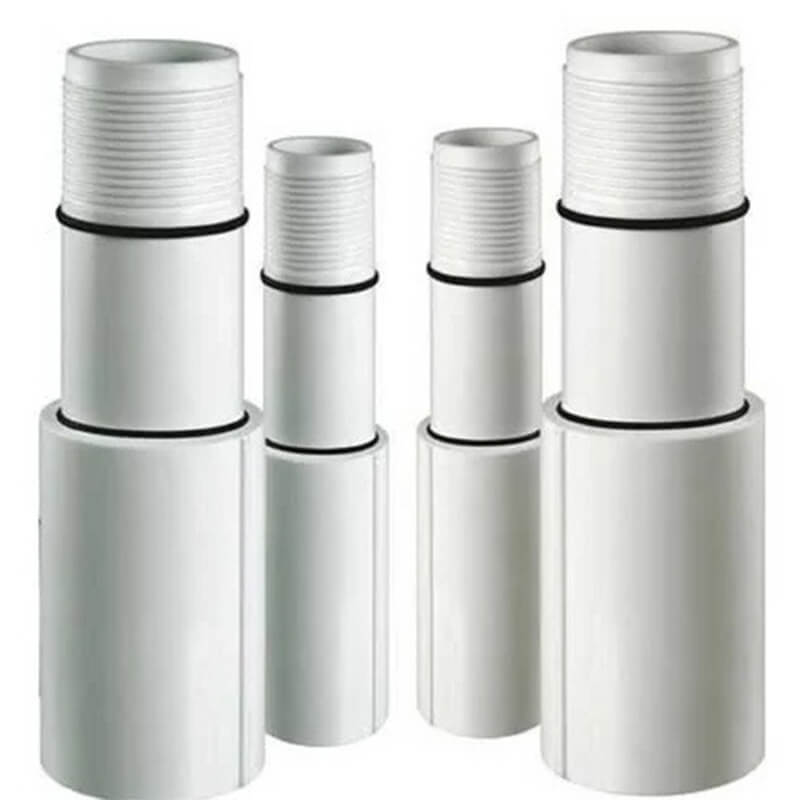

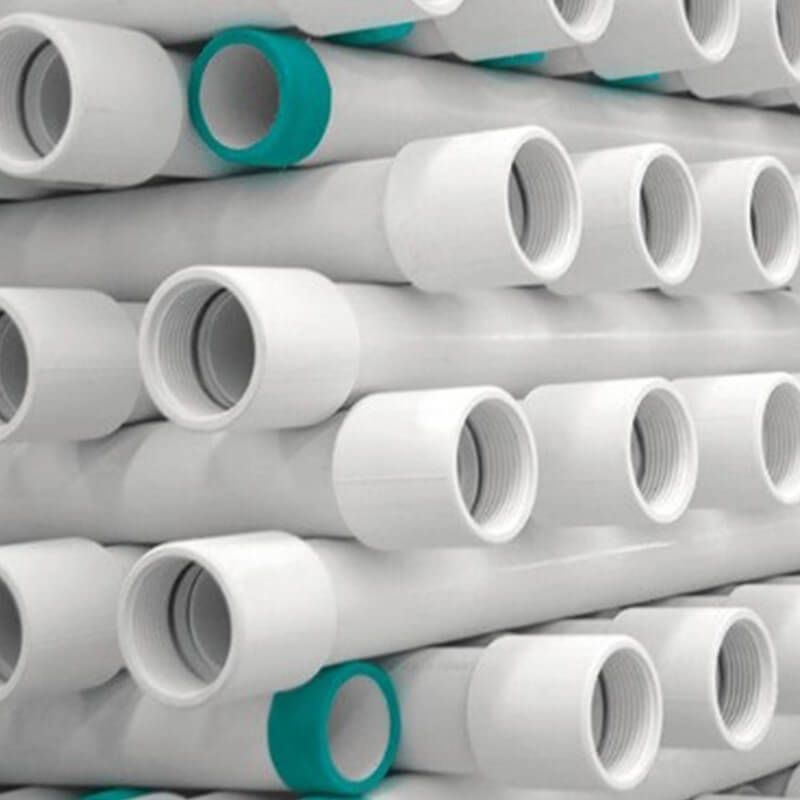

1. Product name: PVC Column Pipe
2.Connection method:Socket thread Connection,Glue ,UPVC fittings ,rubber ring
3. Application: Water well casing pipe ；water well screen filter pipe Water filter ；Water supply ；water drainage ；Cable conduit；Irrigation；Hydroponic
4. Working Pressure: PN10 PN12.5 PN16
5. Size: DN75mm-315mm or as required
6. Delivery: 10-30 days depending on the total quantity.
7. Packing: 3/6/9/12m/ Pcs for straight, with plain ends, RRJ end or SCJ end.
8. Certification:CE,ISO90001,GB/T1002.1-2006.
9. Products Inspection: Raw material, production process, delivery or third-party factory inspection
Withstands erosion from various chemicals in groundwater and soil, offering a long service life of over 50 years under normal conditions.
Withstands external pressure during deep-well installation and internal operating pressure.
The lightweight design facilitates transportation and installation, reducing labor intensity and costs. Bell-and-spigot connections enable quick assembly, shortening project timelines.
Smooth inner walls with a low friction coefficient minimize flow resistance, improve water conveyance efficiency, and resist scaling.
Made from non-toxic materials, suitable for potable water transmission and compliant with drinking water hygiene standards.
Bell-and-spigot connections combined with seal rings or adhesives effectively prevent leaks, ensuring water purity during transport.
| Other size | 0.63Mpa | 0.8Mpa | 1.0Mpa | 1.25Mpa | 1.6Mpa | 2.0Mpa | 2.5Mpa |
| 63 | 2 | 2.5 | 3 | 3.8 | 4.7 | 5.8 | 7.1 |
| 75 | 2.3 | 2.9 | 3.6 | 4.5 | 5.6 | 6.9 | 8.4 |
| 90 | 2.8 | 3.5 | 4.3 | 5.4 | 6.7 | 8.2 | 10.1 |
| 110 | 2.7 | 3.4 | 4.2 | 5.3 | 6.6 | 8.1 | 10 |
| 125 | 3.1 | 3.9 | 4.8 | 6 | 7.4 | 9.2 | 11.4 |
| 140 | 3.5 | 4.3 | 5.4 | 6.7 | 8.3 | 10.3 | 12.7 |
| 160 | 4 | 4.9 | 6.2 | 7.7 | 9.5 | 11.8 | 14.6 |
| 180 | 4.4 | 5.5 | 6.9 | 8.6 | 10.7 | 13.3 | 16.4 |
| 200 | 4.9 | 6.2 | 7.7 | 9.6 | 11.9 | 14.7 | 18.2 |
| 225 | 5.5 | 6.9 | 8.6 | 10.8 | 13.4 | 16.6 | |
| 250 | 5.2 | 7.7 | 9.6 | 11.9 | 14.8 | 18.4 | |
| 280 | 6.9 | 8.6 | 10.7 | 13.4 | 16.6 | 20.6 | |
| 315 | 7.7 | 9.7 | 12.1 | 15 | 18.7 | 23.2 | |
| 400 | 9.8 | 12.3 | 15.3 | 19.1 | 23.7 | 29.4 |
Used for extracting groundwater, rural water supply and farmland irrigation.
Suitable for vertical lifting pipelines in municipal water supply networks, such as in water plant pumping stations and intermediate booster stations.
Functions as the riser in water supply systems for public buildings like schools, hospitals, and residential communities.
Used as distribution risers or return risers in industrial circulating cooling water systems, such as in cooling towers, and for conveying water required in various industrial processes.
