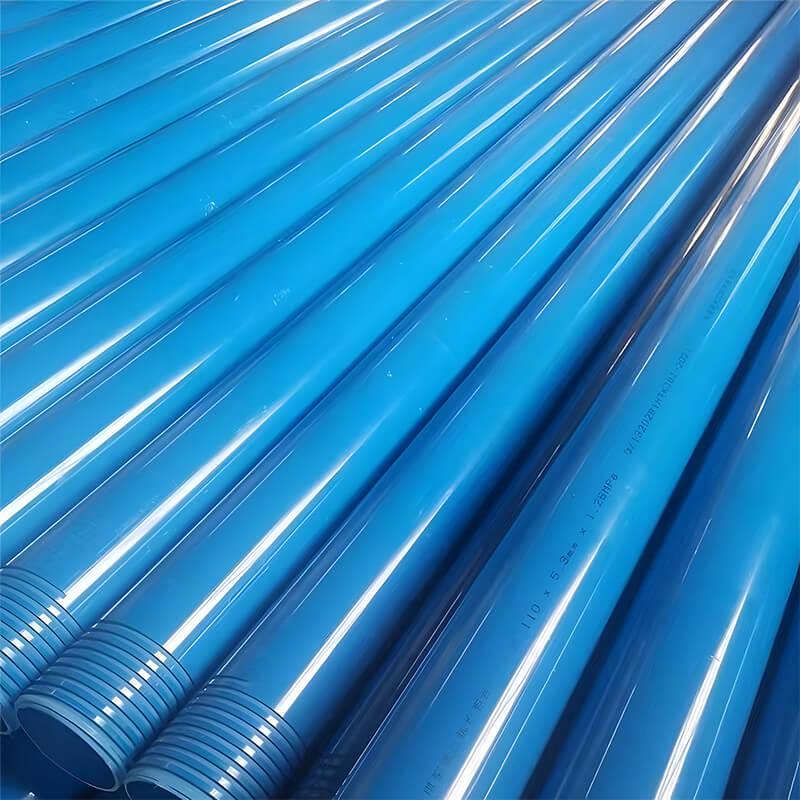

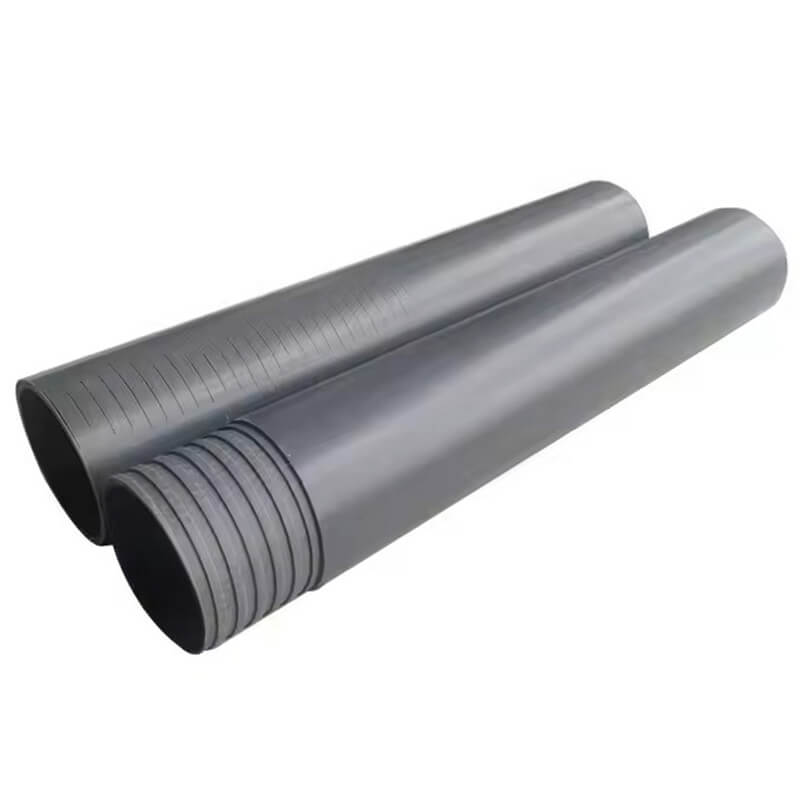

1. Product Name: PVC Well Casing Pipe
2. Working Pressure: 0.63--2.5Mpa
3. Application: Water well casing pipe ；water well screen filter pipe Water filter ；Water supply ；water drainage ；Cable conduit；Irrigation；Hydroponic
4. Standard: DIN 4925&8061 ;IS 12818 ; ASTM Standard D1785
5. length: 3m/4m/6m or as customized
6. Range size: 35mm -400mm or as required
7. Delivery: Usually 3-7workings days

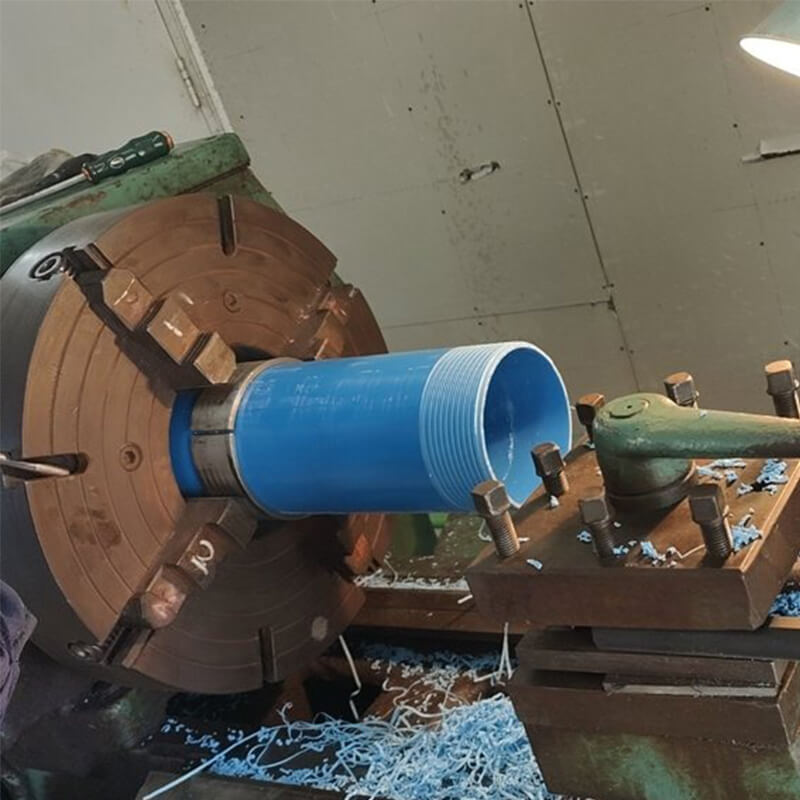

8. Connection method:Socket thread Connection,Glue ,UPVC fittings ,rubber ring
9. Certification:CE,ISO90001,GB/T1002.1-2006.

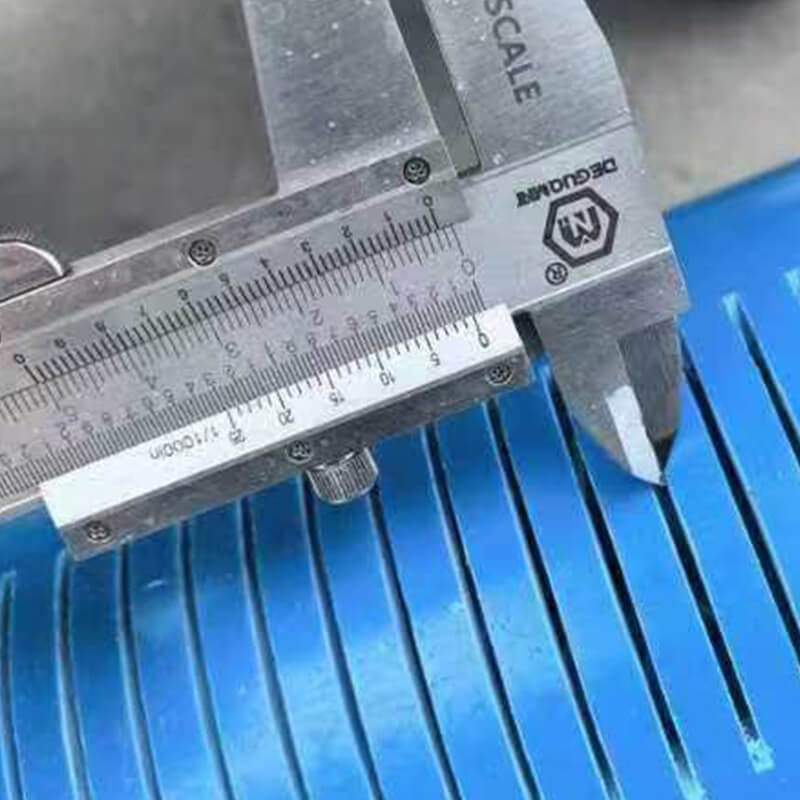

10. Products Inspection: Raw material, production process, delivery or third-party factory inspection
Resistant to chemicals in groundwater and soil,resulting in a long service life.
Minimizes flow resistance and reduces scale buildup.
Safe for potable water delivery.
Prevents galvanic corrosion.
Stable against common substances found in soil and groundwater.
| Other size | 0.63Mpa | 0.8Mpa | 1.0Mpa | 1.25Mpa | 1.6Mpa | 2.0Mpa | 2.5Mpa |
| 63 | 2 | 2.5 | 3 | 3.8 | 4.7 | 5.8 | 7.1 |
| 75 | 2.3 | 2.9 | 3.6 | 4.5 | 5.6 | 6.9 | 8.4 |
| 90 | 2.8 | 3.5 | 4.3 | 5.4 | 6.7 | 8.2 | 10.1 |
| 110 | 2.7 | 3.4 | 4.2 | 5.3 | 6.6 | 8.1 | 10 |
| 125 | 3.1 | 3.9 | 4.8 | 6 | 7.4 | 9.2 | 11.4 |
| 140 | 3.5 | 4.3 | 5.4 | 6.7 | 8.3 | 10.3 | 12.7 |
| 160 | 4 | 4.9 | 6.2 | 7.7 | 9.5 | 11.8 | 14.6 |
| 180 | 4.4 | 5.5 | 6.9 | 8.6 | 10.7 | 13.3 | 16.4 |
| 200 | 4.9 | 6.2 | 7.7 | 9.6 | 11.9 | 14.7 | 18.2 |
| 225 | 5.5 | 6.9 | 8.6 | 10.8 | 13.4 | 16.6 | |
| 250 | 5.2 | 7.7 | 9.6 | 11.9 | 14.8 | 18.4 | |
| 280 | 6.9 | 8.6 | 10.7 | 13.4 | 16.6 | 20.6 | |
| 315 | 7.7 | 9.7 | 12.1 | 15 | 18.7 | 23.2 | |
| 400 | 9.8 | 12.3 | 15.3 | 19.1 | 23.7 | 29.4 |
Construct drinking water wells and irrigation wells, providing a safe and reliable groundwater source for households, communities, and farms.
Used to build injection, extraction, and monitoring wells.
Used to build groundwater quality monitoring wells,collecting water samples to analyze pollutant levels in soil and groundwater.
We are not only a product manufacturer, also a solution provider, whether you have a Question or Request For Quotations, we're here to help.
