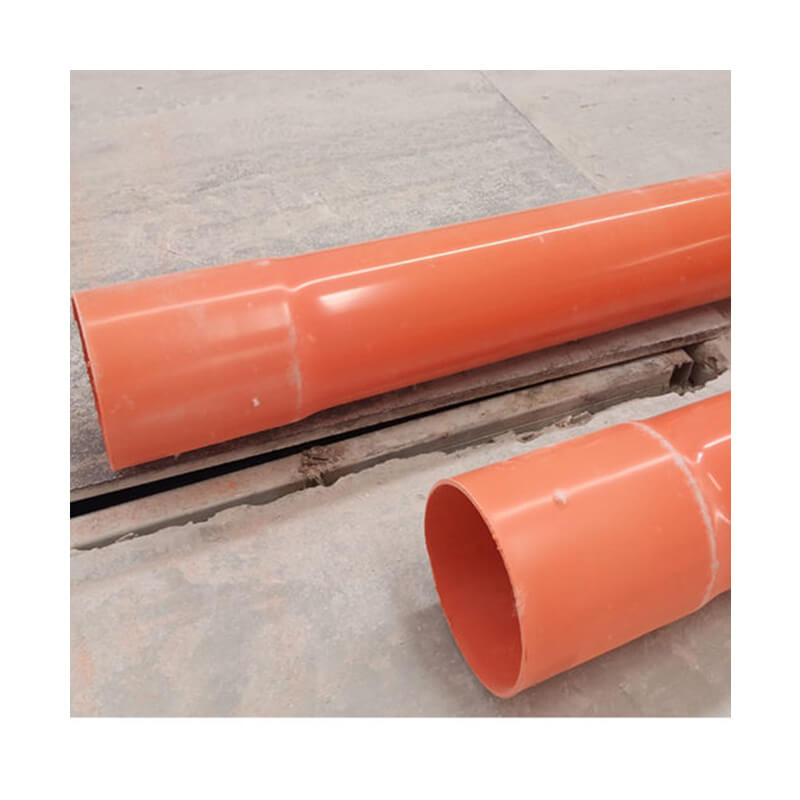

PVC Pipe for Cable Protection

1. Product name:PVC Pipe for Cable Protection

2. Fittings offered: Socket insert,coupler or bend

3. Application: Indoor decorative electric protection ；Water and electricity installation ；Electric communication protect sleeve ； Underground wire protect

5. Diameter: OD50-315mm/

6. Delivery: 10-30 days depending on the total quantity.

7. Packing: 3/6/9/12m/ Pcs for straight, with plain ends, RRJ end or SCJ end.

8. CO (Certificate of Origin): China, CO could be provided by free.

9. Products Inspection: Raw material, production process, delivery or third-party factory inspection

10. MOQ: Trial Order or 1*20ft containers by mixed loading.

Send E-mail Get Price

Facebook Twitter LinkedIn Pinterest Share

WhatApp：+86-15522676451
E-mail：inquiry@casingscreenpipe.com
Tel: +86-15522676451
Address：Room 708, Building D, New City Center, Xiqing District, Tianjin

Introduction

01 High Temperature Resistance:

Maintains its shape and strength in high-temperature environments.
02 Excellent Insulation:

Withstands voltages over 30,000 volts, effectively protecting cable insulation.
03Corrosion Resistance & Long Service Life:

Resists chemical corrosion from acids, alkalis, and salts, with a service life exceeding 50 years.
04Superior Flame Retardancy:

It is self-extinguishing upon removal of the flame.
05Easy Installation:

Lightweight and quick to construct, significantly reducing installation time.
06High Cost-Effectiveness:

Offers a lower cost compared to traditional steel pipes and eliminates the need for concrete encasement, reducing overall project costs.

Parameter

DN(mm)	Thickness(mm)	DN(mm)	Thickness(mm)
50	2.5	125	8
50	3	139	5
50	5	139	6
63	3	139	7
63	5	150	4
75	3	150	5
75	5	156	3
90	3	160	3.2
90	4	160	4
90	5	160	4.5
110	3	160	5
110	4.2	162	6
110	5	167	8
125	5	167	7
167	8.5	216	8
181	3	219	7
181	7	219	9.5
192	6.5	219	13
192	7.5	250	10
192	8.5	250	11
200	3	250	13
200	5	250	15
200	7	315	7
200	8	-	-
200	31.9	-	-

Application

01 Cable Protection:

Suitable for civil airport construction, engineering parks, and residential community development projects.
02 Urban Power Grid Construction and Renovation:

Maintains its shape and strength in high-temperature environments.
03 Municipal Engineering Construction:

Commonly applied in urban municipal renovation projects, transportation and bridge infrastructure development, as well as street lighting cable installation.
